In Stock
SKU: SENSPD500

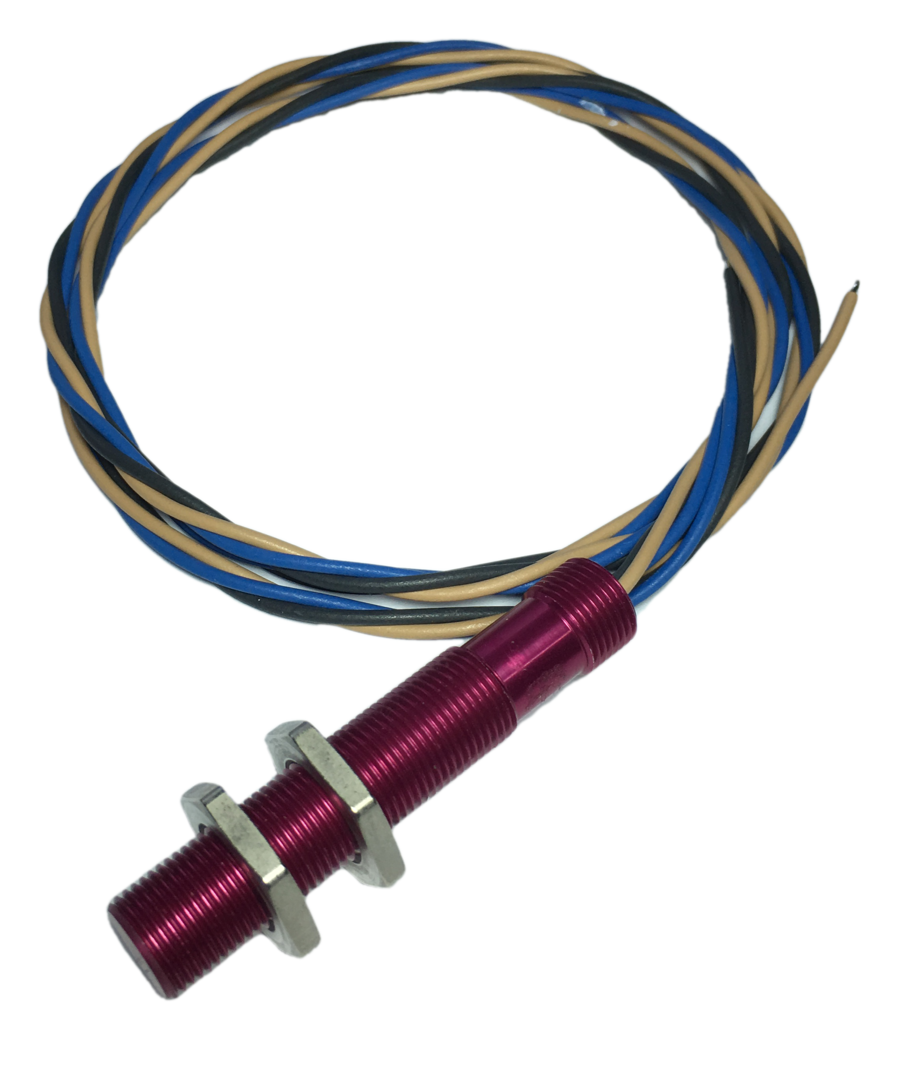

Hall Effect Speed Sensor – Long (M12)
$113.85 NZD inc. GST
M12 threaded barrel Hall Effect speed sensor for wheel speed, driveshaft, or geartooth sensing. Red anodised aluminium housing with consistent digital output independent of RPM. Wide supply voltage range of 5–24V and maximum frequency of 15kHz makes it suitable for ABS, traction control, speedometer, and data logging inputs on any aftermarket ECU.
Specifications
- Sensing technology: Hall Effect — digital output
- Thread: M12×1.0
- Overall length: 65.5mm
- Supply voltage: 5–24V
- Maximum frequency: 15kHz
- Wiring: Brown (supply), Blue (ground), Black (signal)
- Requires pullup resistor on signal output
- Red anodised aluminium housing
- Compatible with Haltech, Link ECU, MoTeC, Emtron & more
