Link ECU
SKU: 101-0237

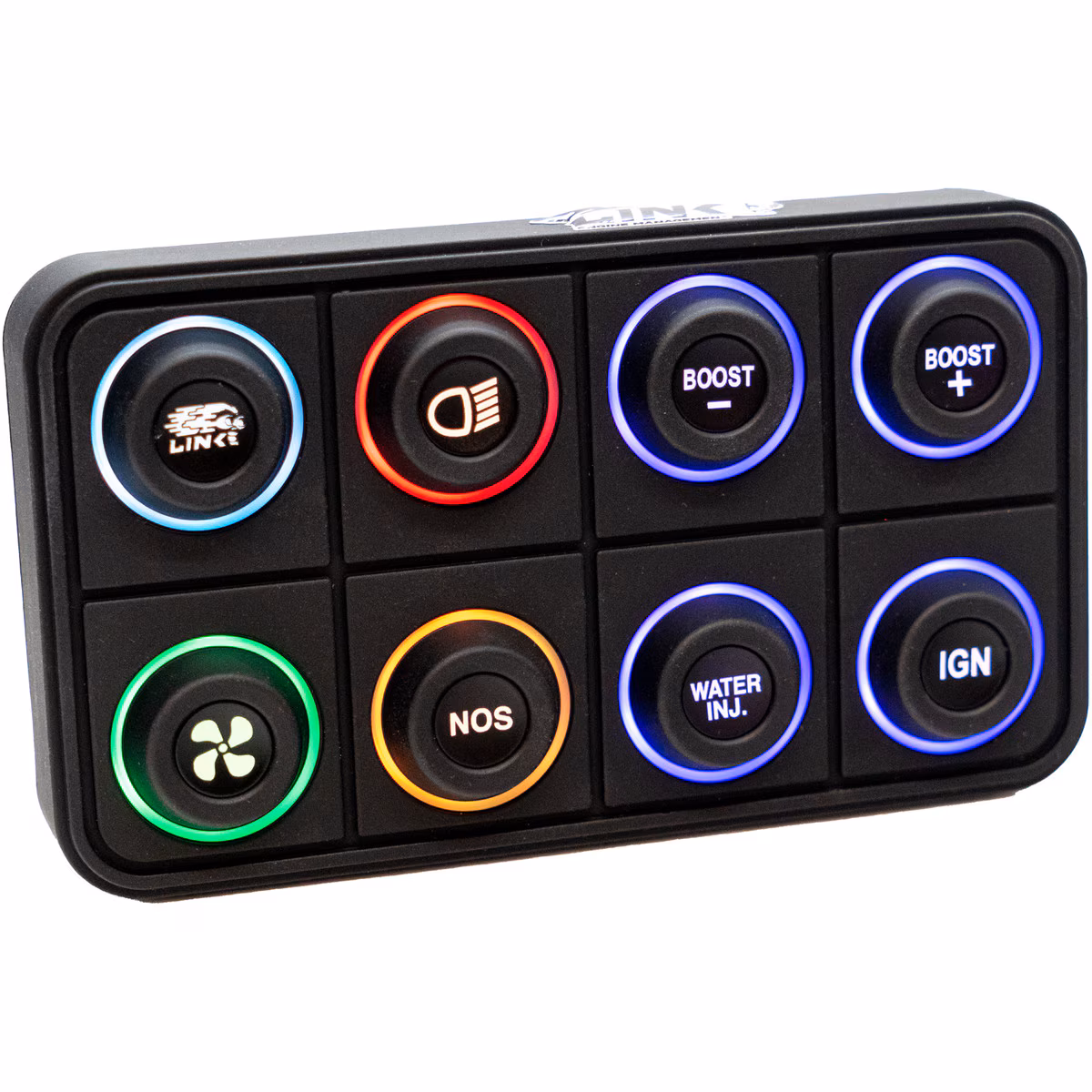

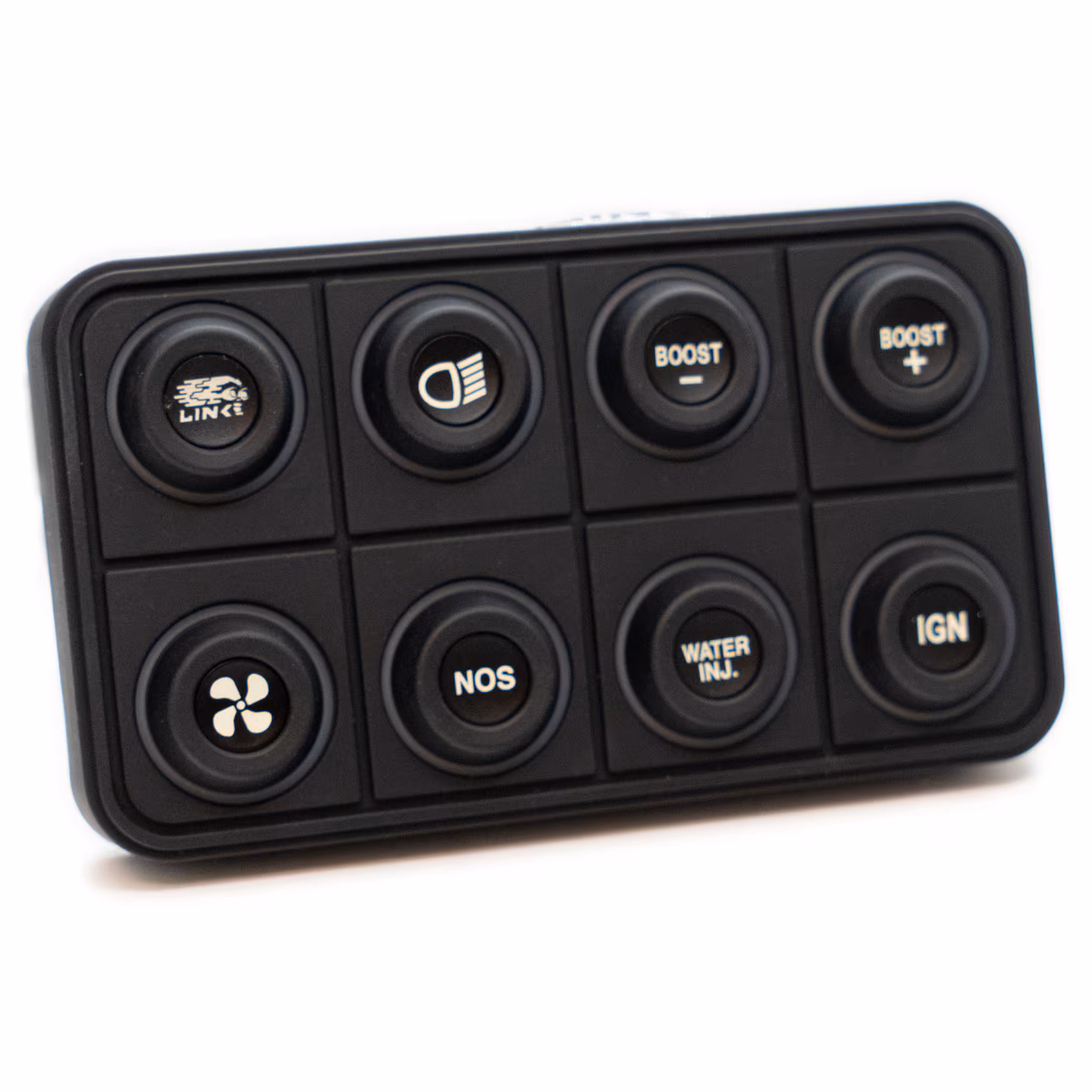

Link CAN Keypad – 8 Button
$718.75 NZD inc. GST
A rugged 8-button CAN keypad built for street, track, and off-road environments. Features customisable RGB indicator rings per button and interchangeable 15mm button inserts. Supports momentary, latched, and toggle modes. Fully configurable via G4X PC Link — compatible with all G4X and G5 ECUs (v6.22 PC Link onwards).
Features & Specifications
- Compatible with all Link G4X and G5 ECUs (v6.22 PC Link onwards)
- Customisable RGB indicator rings — momentary, latched, and toggle modes
- IP67/IP69K waterproof — dust, water immersion, and high-pressure wash rated
- Chemical resistant — fuel, cleansers, and acids | UVB 400hr UV protection
- Switches rated for 3 million operations
- Operating temp: −40 to +70°C | Operating voltage: 8–32V | Current: <50mA
- Dimensions: 123.5mm (W) × 70mm (H) | Mounting stud gap: 78mm

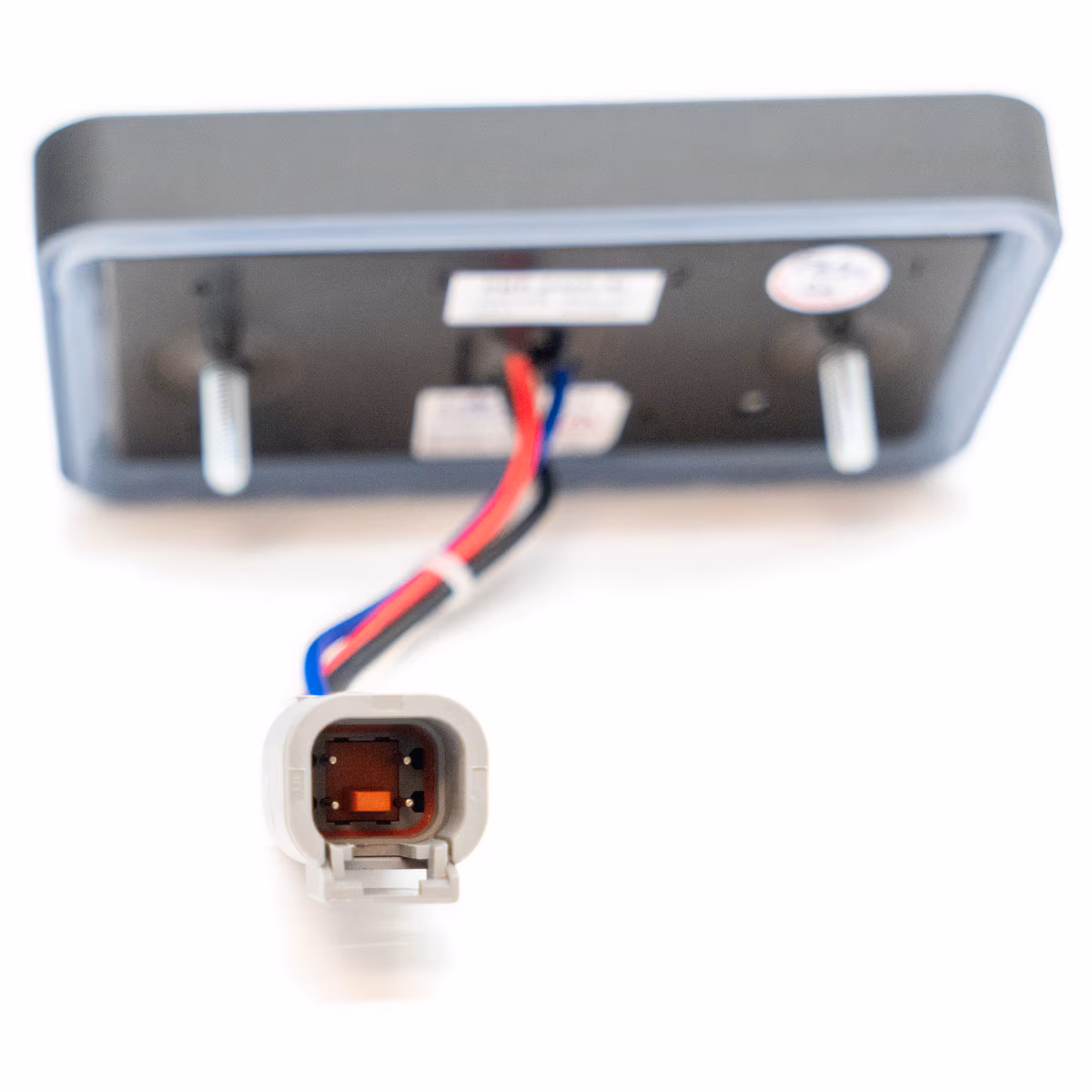

- Connector: DTM4 (Black=GND, Red=PWR, White=CAN Hi, Blue=CAN Lo)
- Box includes: keypad, DTM4 connector kit, sticker, Link Logo button insert
