Link ECU
SKU: 125-1000
Link CAN Lambda

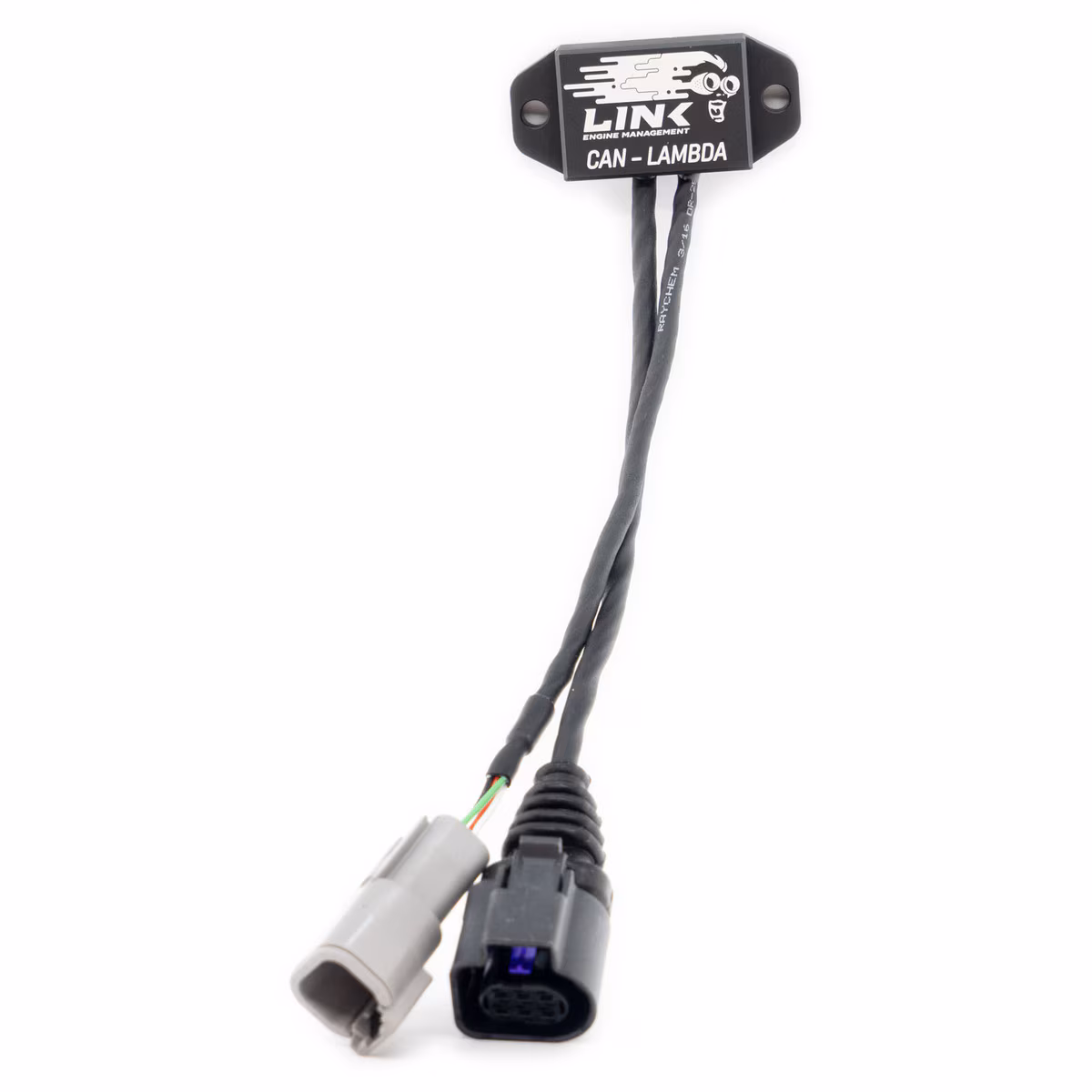

CAN Lambda Kit (CANLAM)
$630.00 NZD inc. GST
Complete wideband kit with Bosch LSU4.9 sensor included. Measures oxygen content in exhaust gases and transmits lambda values via CAN bus for precise fuel mixture tuning. Compatible with Link ECU and other aftermarket ECUs. The compact enclosure mounts cleanly near the sensor bung with a short 170mm lead to the module.
Features & Specifications
- Bosch LSU4.9 wideband sensor included
- Sensing range: 0.67–10 lambda
- CAN bus output — compatible with Link ECU and other aftermarket ECUs
- CAN speed options: 125kbps, 250kbps, 500kbps, 1Mbps
- Connectors: DTM4 (power/CAN) + 6-pin LSU4.9 sensor socket
- Input voltage: 7.5–20V (controller) | 10.8–16.5V (sensor heater)
- Operating temperature: −20 to 100°C
- Dimensions: 60mm (L) × 26mm (W) × 15mm (H) | Lead: 170mm | Weight: 70g
- Box includes: CANLAM module, Bosch LSU4.9 sensor, DTM4 connector kit, O2 bung & plug, stickers, quick start guide
NZ Shipping $12.99 · Free Pickup Hampton Downs · Secure payments via Stripe
