In Stock
SKU: 111-4000

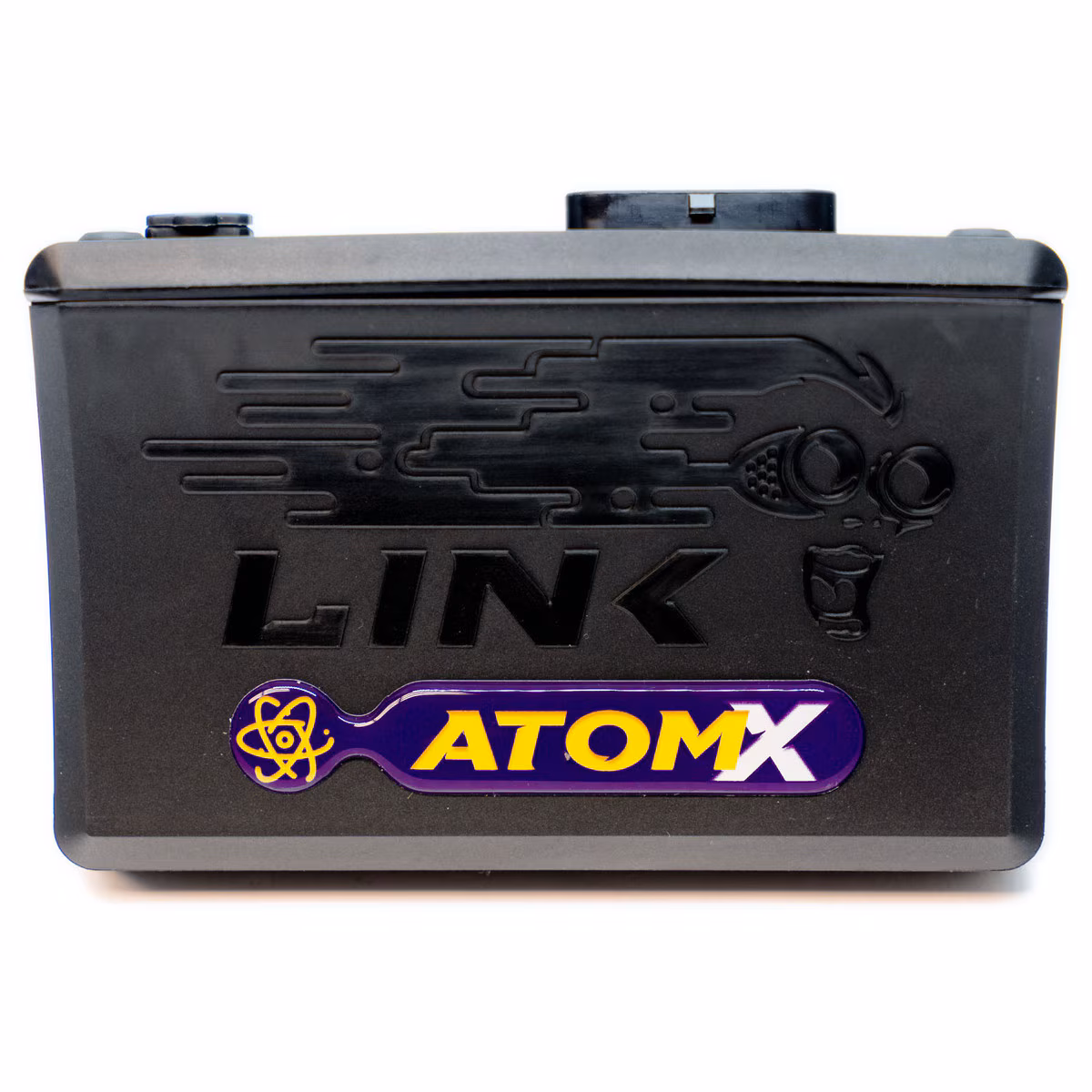

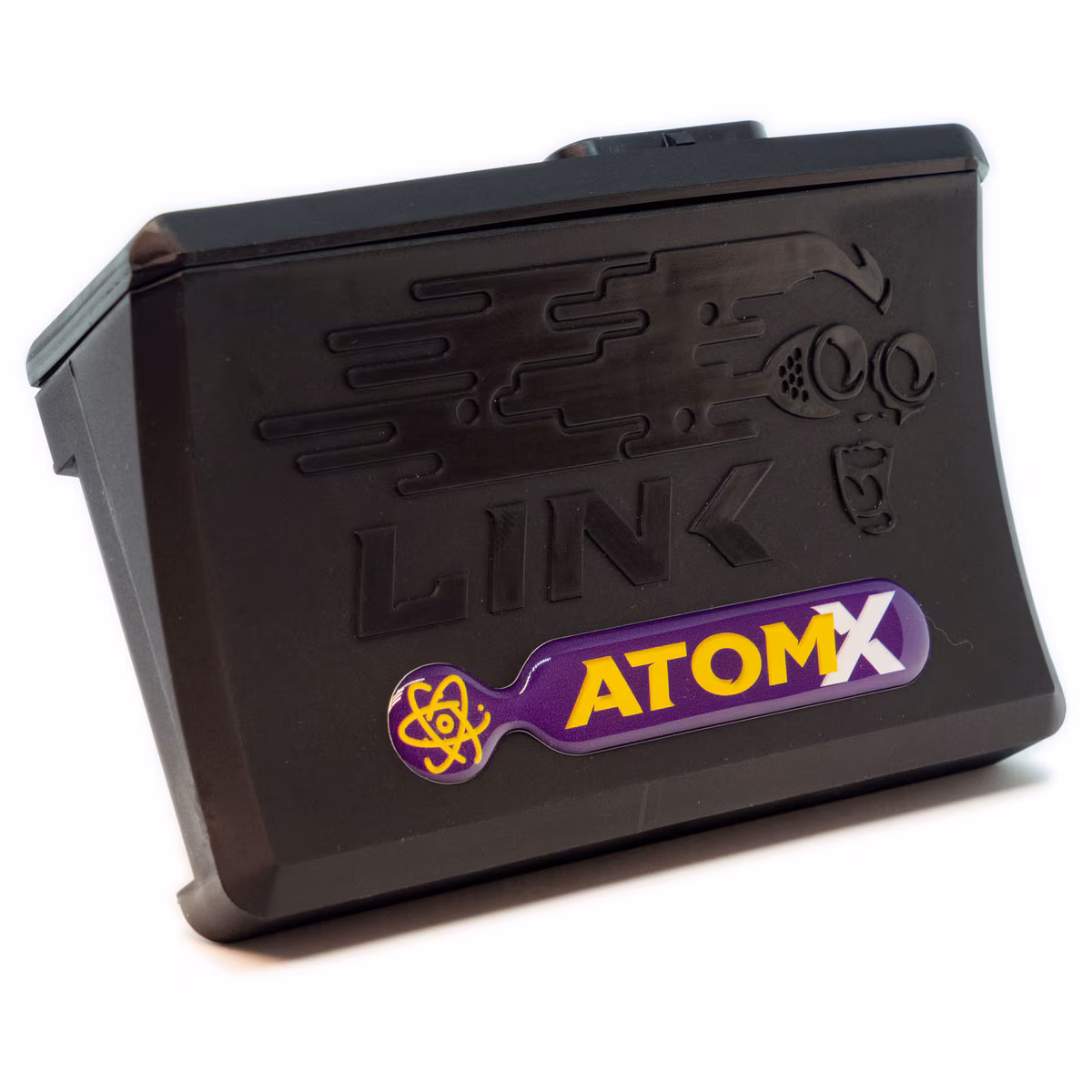

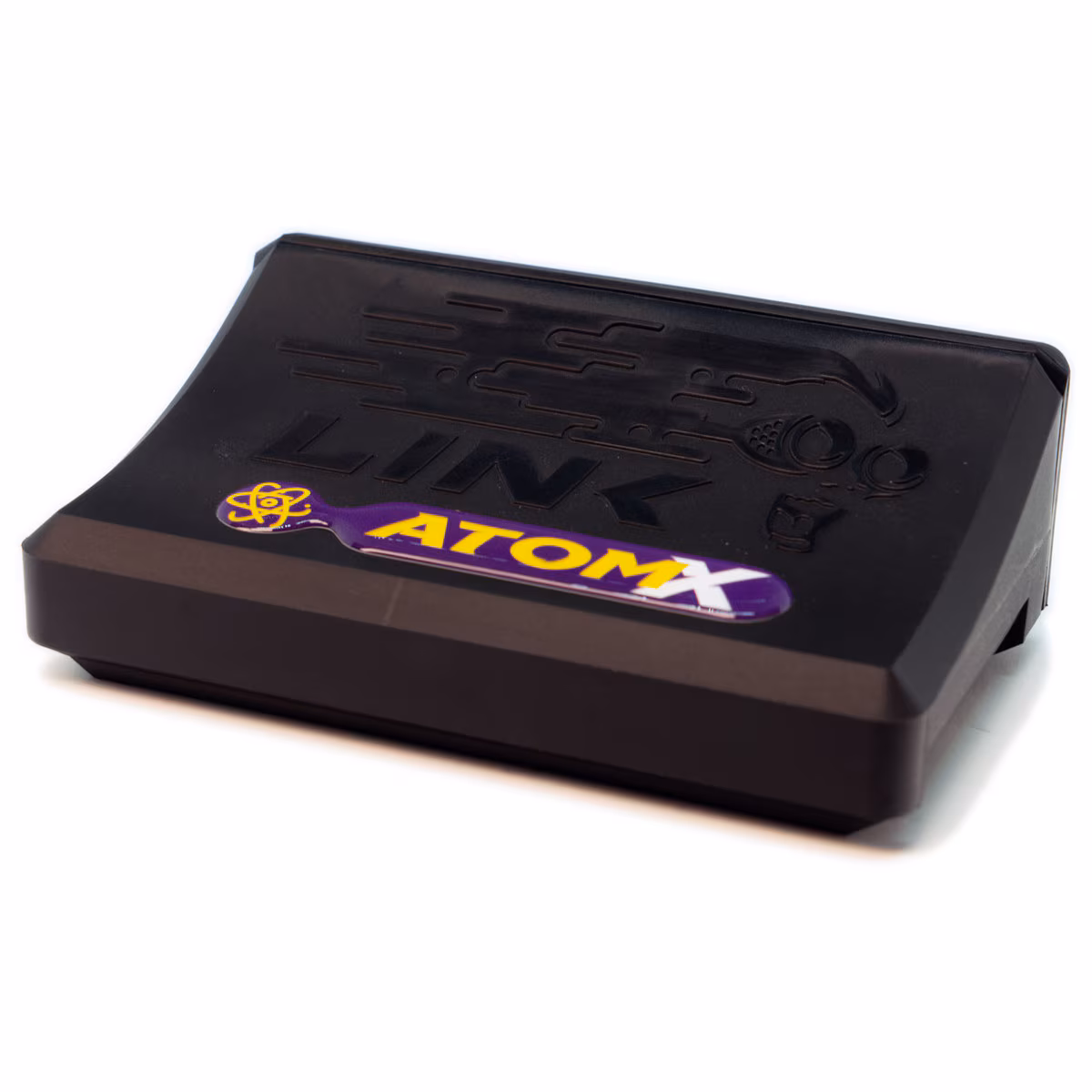

Link G4X AtomX ECU
$1,431.00 NZD inc. GST
Entry-level Link ECU capable of controlling up to 4 cylinders sequential or 8 cylinders batch fire. Shares the same 150MHz microcontroller as the entire G4X range — not a cut-down chip. 512MB onboard logging at 32-bit across up to 250 channels. Full PC Link software support including knock control, boost control, closed-loop idle, and individual cylinder trims.
Specifications
- Controls up to 4 cylinders sequential / 8 cylinders batch fire
- 150 MHz microprocessor (same as full G4X range)
- 512MB logging at 32-bit — up to 250 channels
- 4 saturated injector drives, 4 ignition channels
- 4 auxiliary outputs, 3 analog inputs, 2 temp inputs, 2 digital inputs, 2 trigger inputs
- 1× CAN bus, 1× USB tuning port
- 20,000+ RPM capability, 12-bit ADC
- Operating voltage: 8–22V
- 34-pin waterproof connector
- Dimensions: 79mm L × 126mm W × 42mm H | Weight: 360g
- Includes USB tuning cable, mounting bracket & wiring instructions
NZ Shipping $12.99 · Free Pickup Hampton Downs · Secure payments via Stripe
