In Stock
SKU: 127-4000

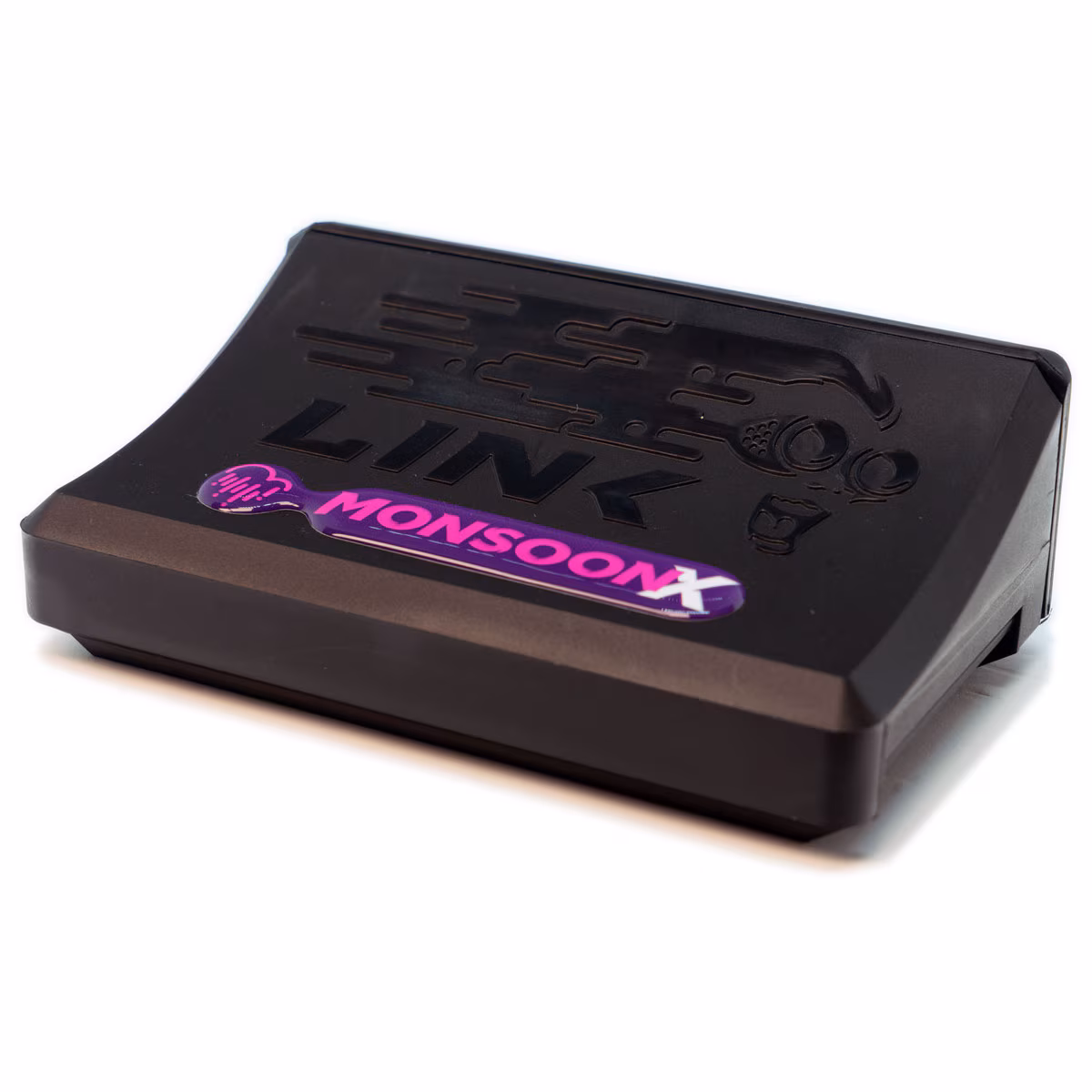

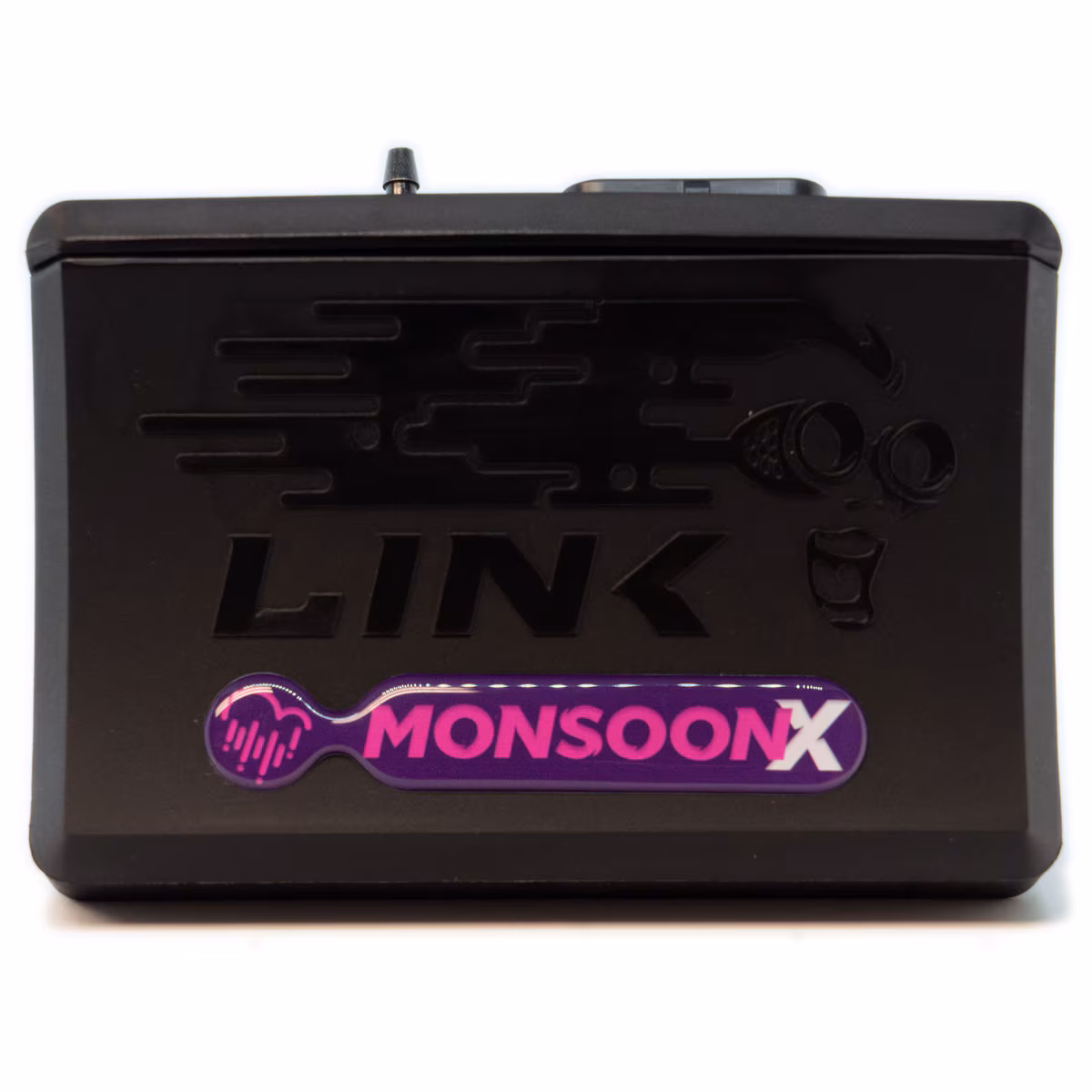

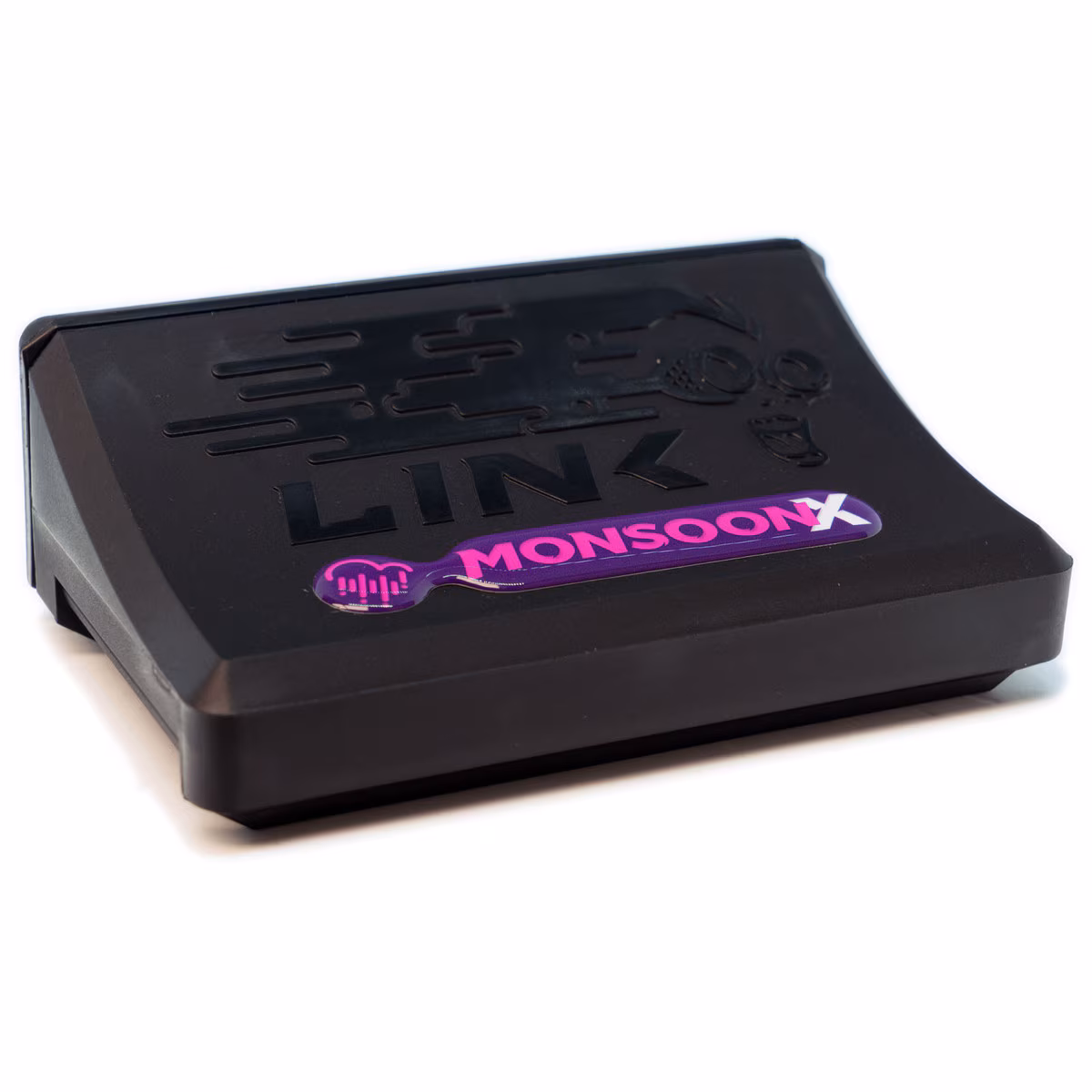

Link G4X MonsoonX ECU
$1,925.00 NZD inc. GST
Wire-in Link ECU for naturally aspirated or turbocharged engines. Controls up to 4 cylinders sequential or 8 cylinders batch fire, with an onboard 4 bar MAP sensor eliminating the need for an external unit. Shares the same 150MHz microcontroller as the full G4X range — not a cut-down chip. 512MB onboard logging at 32-bit across up to 250 channels. Full PC Link software support including VVT control, launch control, anti-lag, and closed-loop boost control.
Specifications
- Controls up to 4 cylinders sequential / 8 cylinders batch fire
- 150 MHz microprocessor (same as full G4X range)
- Onboard 4 bar MAP sensor
- 512MB logging at 32-bit — up to 250 channels
- 4 injector drives, 4 ignition drivers, 6 auxiliary outputs
- 4 analog inputs, 2 temp inputs, 4 digital inputs, 2 trigger inputs
- 1× CAN bus, 1× USB tuning port
- 20,000+ RPM capability, ignition timing to 0.1° precision
- VVT control, launch control, anti-lag, closed-loop boost control
- Operating voltage: 8–22V
- Dimensions: 95mm L × 130mm W × 45mm H | Weight: 220g
- Includes USB tuning cable, mounting bracket & wiring instructions
NZ Shipping $12.99 · Free Pickup Hampton Downs · Secure payments via Stripe
