In Stock
SKU: 153-5000
Link G5 Voodoo Pro ECU
$5,744.25 NZD inc. GST
Link's next-generation G5 platform in the flagship Voodoo Pro package. Manages up to 12 cylinders with port or direct injection and direct spark. Steps up from the G4X with a faster processor, dual onboard digital wideband lambda controllers, significantly expanded I/O, USB-C, Wi-Fi, Ethernet, and onboard GPS. Compatible with all existing G4X and G5 tunes. If you're building a serious rotary or high-cylinder-count motorsport application, this is the unit to spec.
Specifications
- Manages up to 12 cylinders — port or direct injection, direct spark
- 12 injector drives, 8 ignition drives, 4 injector/ignition dual-role drives
- 6 auxiliary outputs, 8 ADIO dual-purpose pins
- 14 analogue inputs, 4 temp inputs, 10 digital inputs, 2 trigger inputs, 2 knock inputs
- Dual onboard LSU 4.9 digital wideband controllers
- Dual on-board H-Bridges — electronic throttle and wastegate control
- 1GB onboard data logging

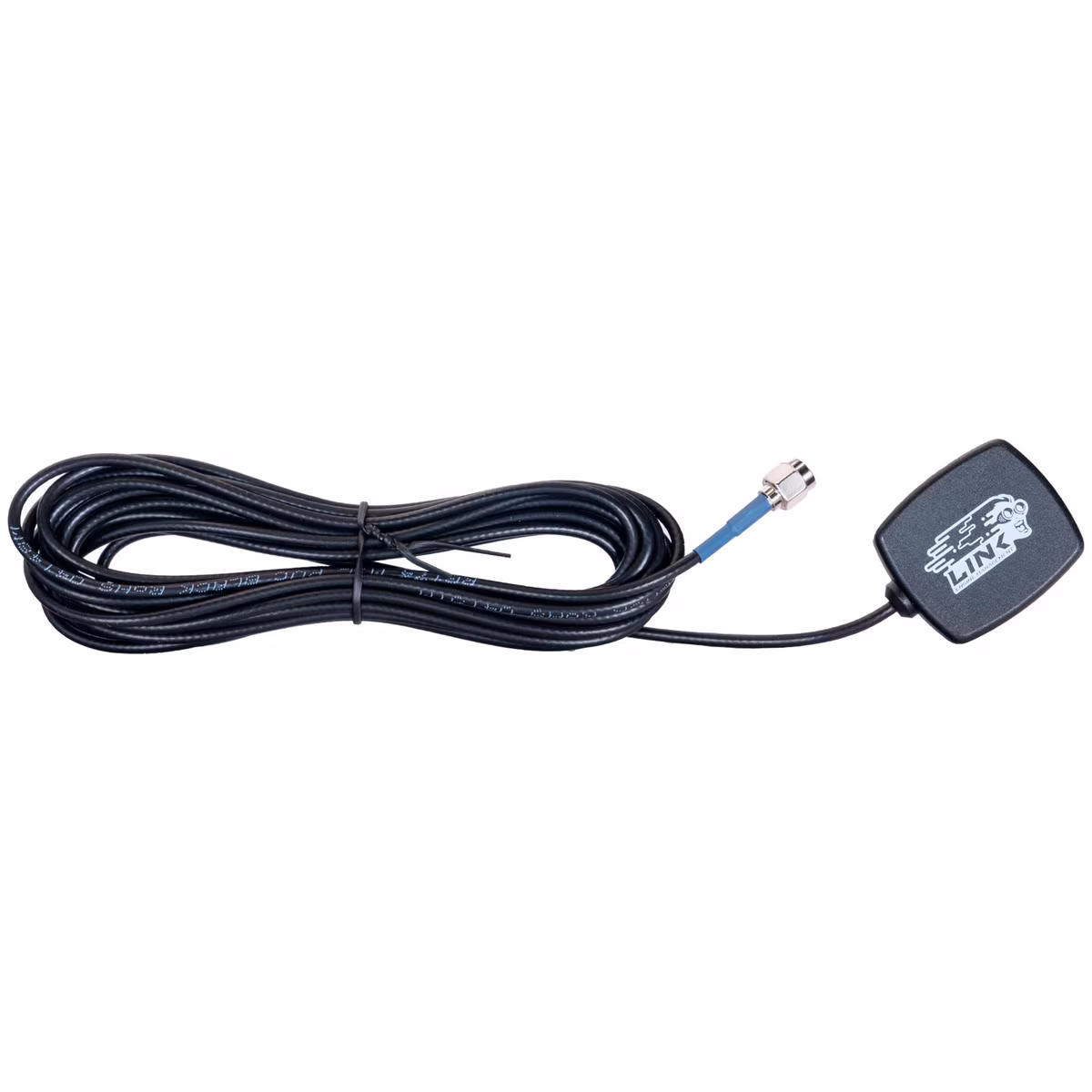

- USB-C, Wi-Fi, dual CAN, Ethernet (daisy chain), GPS

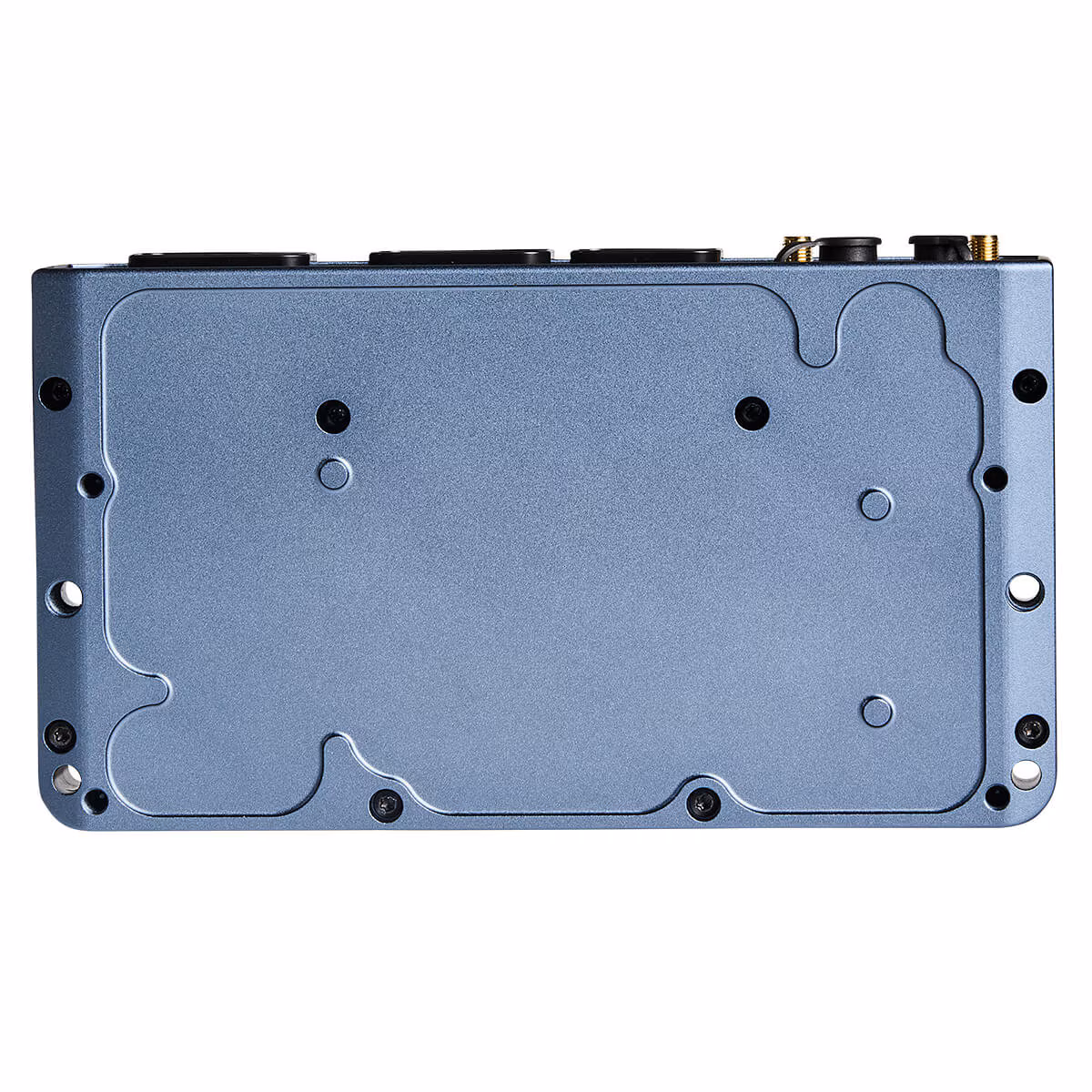

- CNC sealed enclosure — 193.5mm × 109.2mm × 45mm | 768g
- Compatible with all G4X and G5 tunes
- Tuned with PCLink software (free download) | SKU: 153-5000
