Link ECU
SKU: 101-0332
Link RACEPAD
Steering Wheel CAN Keypad
$1,723.00 NZD inc. GST

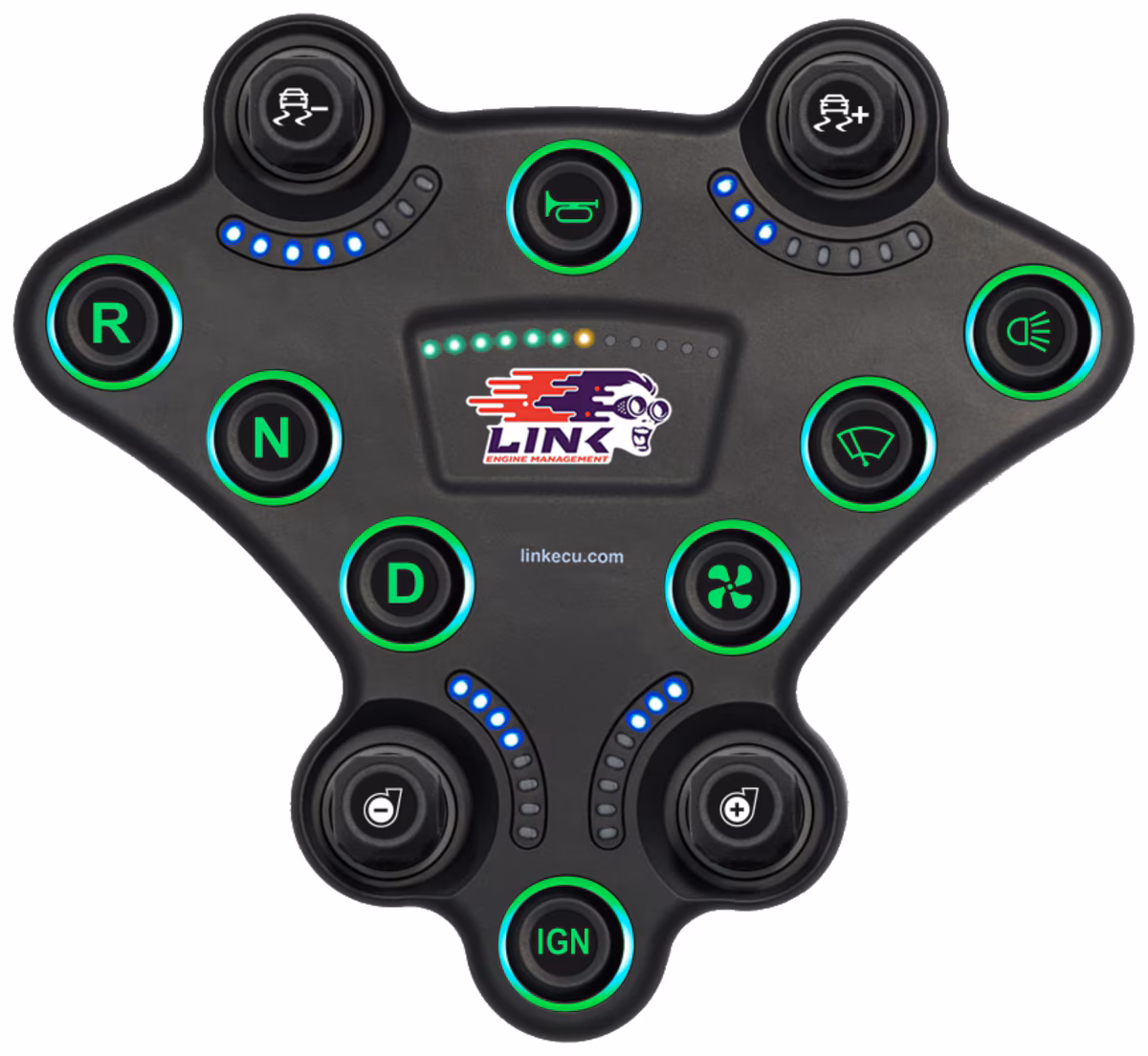

A CAN-bus steering wheel button panel designed for serious racing applications. Fully customisable button icons and RGB LED colours let you tailor the RACEPAD to your exact driving style. Mounts directly to MOMO and Nardi-pattern steering wheels via the included adapter bracket. Compatible with all Link G4X and G5 ECUs.
Features & Specifications
- 8 backlit buttons with customisable RGB LED rings
- 4 rotary knobs with blue LED lights
- 12 fixed centre LEDs — configurable feedback display
- 4 analog inputs for additional sensors or switches
- CAN configurable via G4X and G5 PC Link software

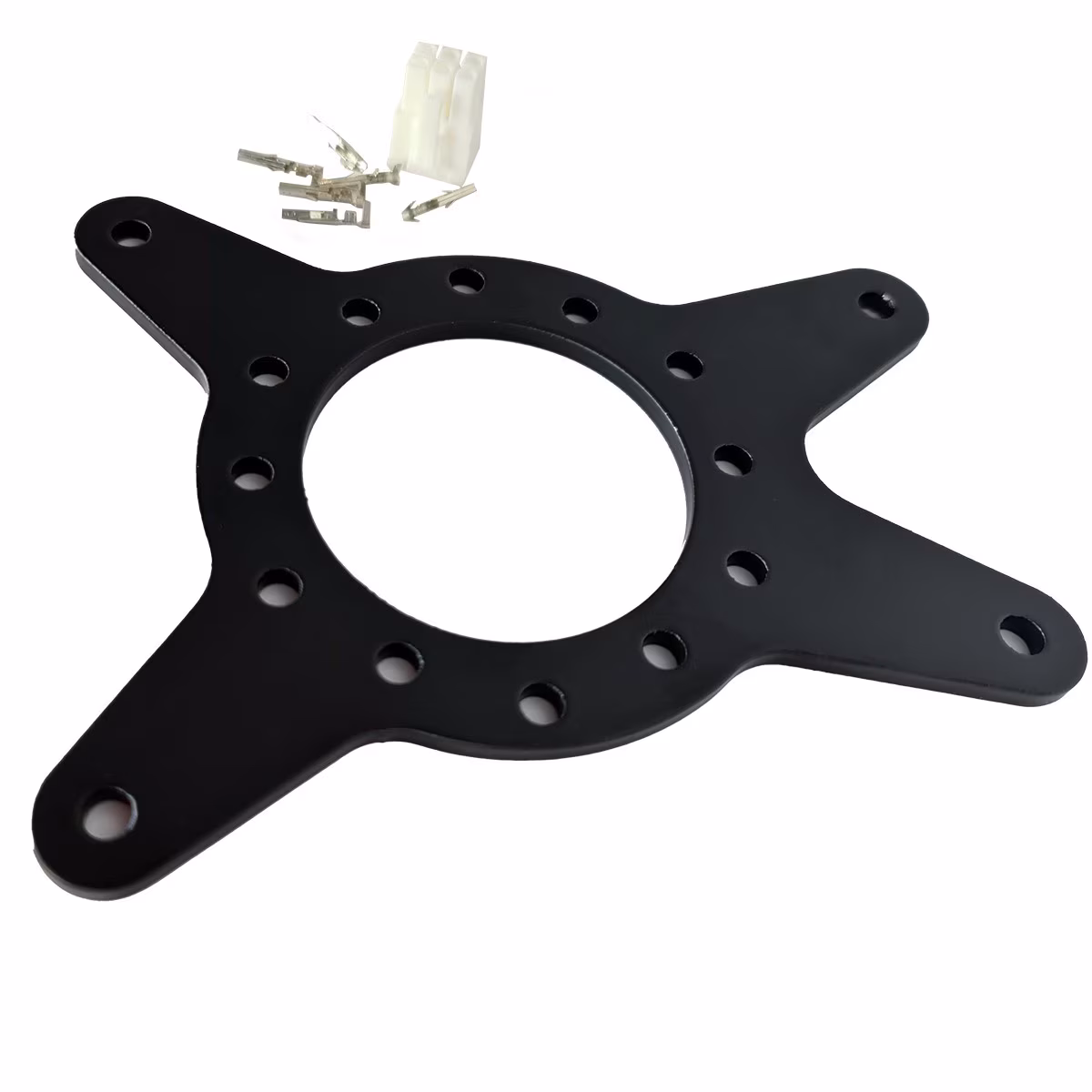

- Mounting plate supports MOMO and Nardi patterns
- Connectors: DTM4 (CAN/Power) + Molex 39-01-3069
- Dimensions: 197mm (W) × 180mm (H) × 36.2mm (D) | Weight: 110g
- Switch life: 3 million operations | Chemical & UV resistant
- Box includes: RACEPAD, mounting bracket, DTM4 & Molex connector kits, sticker, Link Logo insert
