Link ECU
SKU: 101-0384

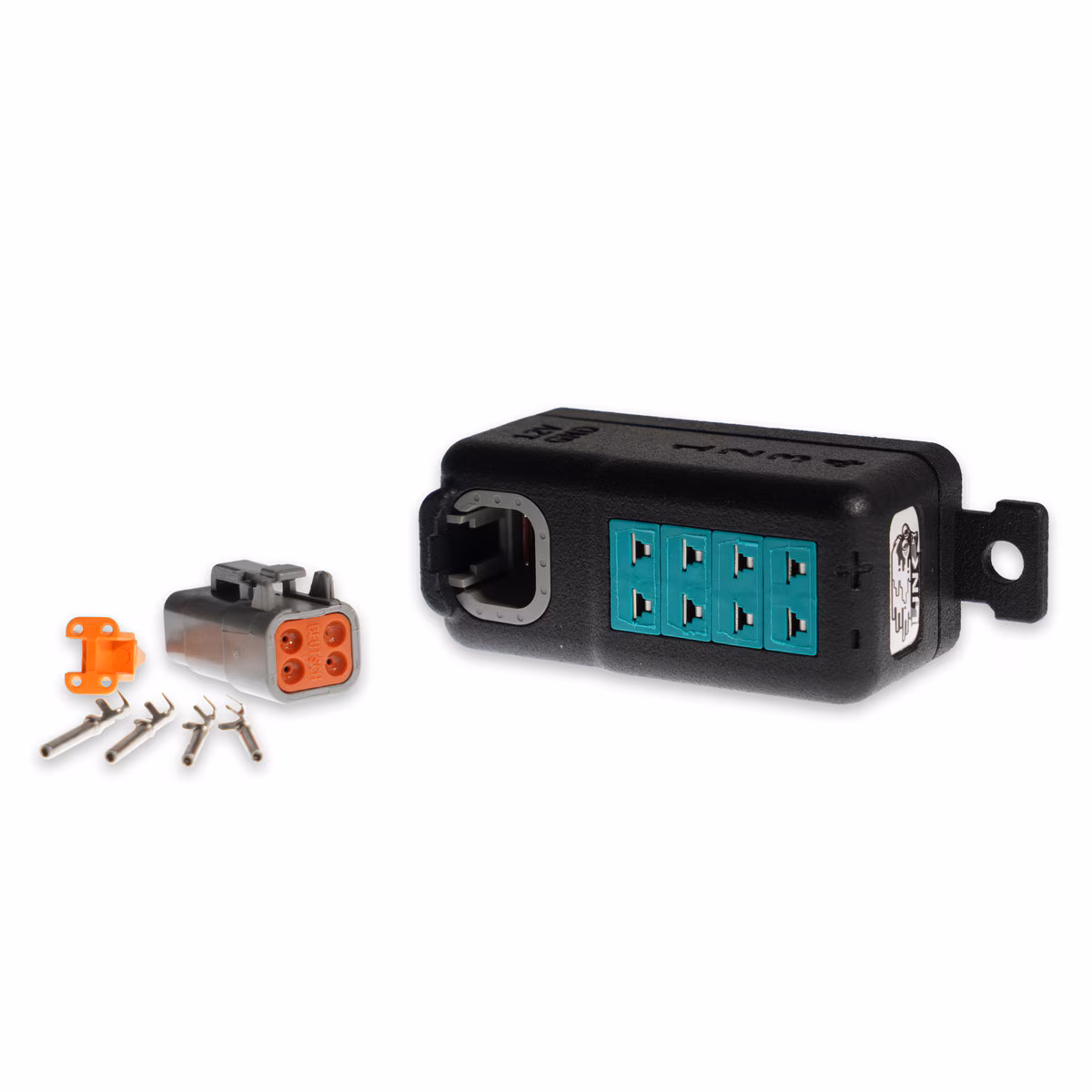

Link TCC04
4 Channel EGT to CAN Module
$450.00 NZD inc. GST
Connect up to four Type-K thermocouples and transmit all readings via CAN bus in a single compact module. Cold junction compensated for accuracy across EGT, intercooler temps, turbo housings, cylinder head, water, and oil temperature monitoring. Pre-configured for Link ECU with wireless configuration and monitoring support.
Features & Specifications
- 4 cold junction compensated Type-K thermocouple inputs
- Temperature range: 0–1250°C | Resolution: 0.25°C | Accuracy: ±2%
- Pre-configured for Link ECU — CAN bus output
- Short circuit and open thermocouple detection
- Wireless configuration and monitoring support
- Adjustable sample frequency up to 100Hz
- CAN speed options: 125kbps, 250kbps, 500kbps, 1Mbps
- DTM4 CAN pinout: Pin 1=12V, Pin 2=GND, Pin 3=CAN Low, Pin 4=CAN High
- Dimensions: 97.3mm (L) × 31.5mm (W) × 34.6mm (H)
- Box includes: TCC04 module, DTM4 mating connector kit, 2× Link stickers
