In Stock
Brand New
MaxxECU
SKU: 1998

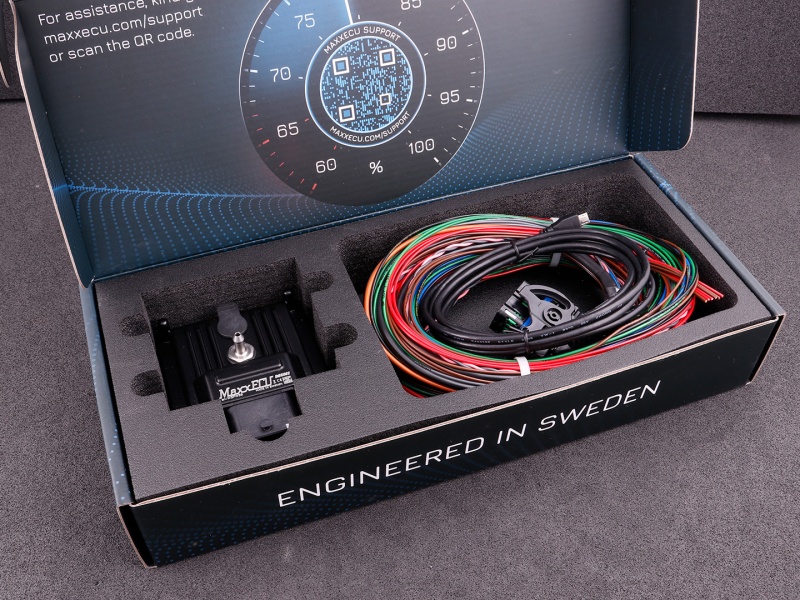

MaxxECU Mini
Standard Kit — 3m Loom Included
$1,450.00 NZD inc. GST
3m loom included
The MaxxECU Mini Standard Kit is the complete plug-and-play package — same capable ECU as the Basic, but bundled with a pre-terminated 3-metre Mini harness so you can get straight into installation. Integrated 4 bar MAP sensor, 1000Hz data logging, and support for everything from single-cylinder to 12-cylinder engines. The extra cable gives you additional reach where needed.
Specifications
- Integrated 4 bar MAP sensor
- 4× injector outputs (high impedance) | 4× ignition outputs (5V signal)
- 4× GPO ground switching outputs (2A each, GPO8 at 5A)
- 2× temp sensors | 3× analog 0–5V | 1× trigger (VR or Hall) | 2× digital inputs | 1× CANbus
- 1000Hz data logging | 8MB logging memory
- ARM Cortex-M3 @ 120MHz | 2,000 fuel/ignition calculations per second
- Supply: 8–22V | ECU dimensions: 85 × 120 × 43mm | ECU weight: 245g
- Supports: 1–12 cylinder distributed, 2–8 cyl wasted spark, direct spark, 2-stroke, odd-fire

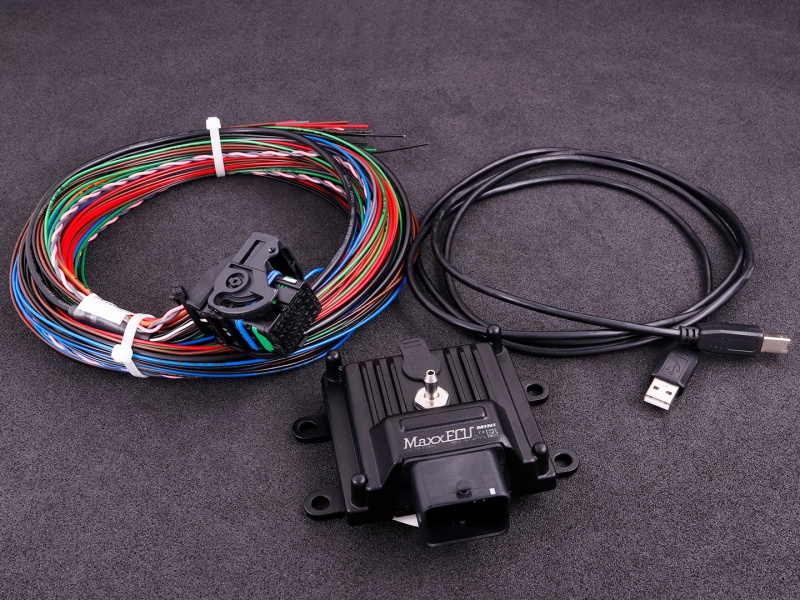

Box Includes

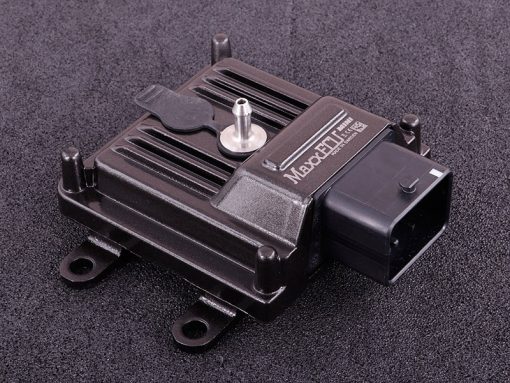

- MaxxECU Mini ECU unit
- 3-metre Mini harness — pre-terminated (SKU 1985)
- Extra cable (SKU 1052)
- USB cable (SKU 1988)
Looking for the Basic Kit (no loom)? View here →
