MaxxECU Pro
Basic Kit — No Loom
$4,440.00 NZD inc. GST
Plug and pins included — loom not included
Special order — please allow 7–14 days for delivery
The MaxxECU Pro is the top of the MaxxECU range — 16 injector outputs, 12 ignition outputs, 18 GPO channels, 8 12V GPO outputs, 12 EGT inputs, dual knock sensors, dual CANbus, dual wideband lambda controllers, 17 analog inputs, and a built-in 4 bar MAP sensor and 3-axis accelerometer. Built for engines that demand every channel. The Basic Kit includes the ECU, two 48-pin CMC connectors with pins, two 32-pin CMC connectors with pins, mounting bracket, Bluetooth antenna, USB cable, MAP hose kit, and extra cable.
Specifications
- Built-in 4 bar MAP sensor | 3-axis accelerometer (8G) | 2× wideband lambda (LSU 4.2/4.9) | Bluetooth MDash
- 16× injector outputs (high/low impedance) | 12× ignition outputs
- 18× GPO ground switching outputs | 8× 12V GPO outputs | 4× half-bridge outputs (E-throttle/DBW capable)
- 8× temp sensors | 17× analog 0–5V | 12× EGT sensor inputs | 2× trigger (VR or Hall)
- 10× digital inputs | 2× knock sensor inputs | 2× CANbus
- 1000Hz data logging | 8MB memory | ARM Cortex-M3 @ 120MHz
- Supply: 8–22V | Dimensions: 252 × 180 × 40mm | Weight: 1137g
- Supports: 1–12 cylinder, rotary (1–6), 2-stroke, wasted spark, direct spark, odd-fire
Box Includes
- MaxxECU Pro ECU unit

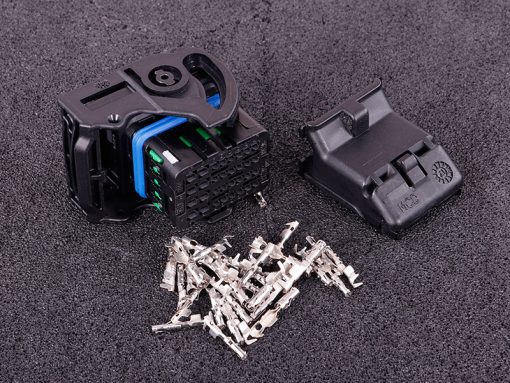

- 2× 48-pin CMC connectors and pins
- 2× 32-pin CMC connectors and pins
- Mounting bracket (SKU 2214)
- Extra cable
- Bluetooth antenna
- USB cable
- MAP sensor hose and conversion fittings
