In Stock
Brand New
MaxxECU
SKU: 1817
MaxxECU Race
Standard Kit — 3m Loom Included
$3,225.00 NZD inc. GST
3m loom included
The MaxxECU Race Standard Kit gets you race-ready faster with a pre-terminated 3-metre Race/Pro Loom included. Same powerful ECU — eight injector and ignition outputs, eight EGT inputs, dual knock sensors, four half-bridge drivers including E-throttle support, built-in wideband lambda, and Bluetooth MDash — with the harness already done so you can focus on the install.
Specifications
- Built-in wideband lambda (LSU 4.2/4.9) | Integrated MAP sensor | Built-in Bluetooth MDash
- 8× injector outputs (high/low impedance) | 8× ignition outputs (5V signal)
- 9× GPO ground switching outputs | 2× 12V GPO outputs | 4× half-bridge outputs (1× E-throttle/DBW)
- 8× EGT sensor inputs (Type-K thermocouple) | 2× knock sensor inputs
- 4× temp sensors | 7× analog 0–5V | 2× trigger (VR or Hall) | 4× digital inputs | 1× CANbus
- 1000Hz data logging | 8MB memory | ARM Cortex-M3 @ 120MHz
- Supply: 8–22V | Dimensions: 155 × 195 × 40mm | Weight: 880g
- Supports: 1–12 cylinder, rotary (1–4), 2-stroke, wasted spark, direct spark, odd-fire

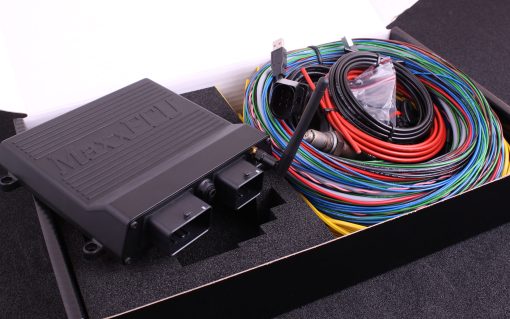

Box Includes
- MaxxECU Race ECU unit
- 3m Race/Pro Loom 1 — pre-terminated
- Extra cable
- Bluetooth aerial
- USB PC cable 1.5m
- MAP sensor hose and conversion fittings
Looking for the Basic Kit (no loom)? View here →
NZ Shipping $12.99 · Free Pickup Hampton Downs · Secure payments via Stripe
