In Stock
Brand New
MaxxECU
SKU: 1914
MaxxECU Sport
Basic Kit — No Loom
$2,495.00 NZD inc. GST
Plug and pins included — loom not included
The MaxxECU Sport steps up the game with expanded I/O, E-throttle drive-by-wire capability, and Bluetooth connectivity to the MDash Android app — all in the same compact aluminium case. Built-in wideband lambda controller, integrated MAP sensor, 7 GPO outputs, and 17 inputs give you everything a demanding track build needs. The Basic Kit includes the ECU, 48-pin CMC connector and pins, Bluetooth antenna, USB cable, and MAP hose kit — terminate your own loom for a clean custom install.
Specifications
- Built-in wideband lambda controller (LSU 4.2 / 4.9) | Integrated MAP sensor
- 6× injector outputs (high/low impedance) | 6× ignition outputs (5V signal)
- 7× GPO ground switching outputs | 2× half-bridge outputs (1× E-throttle / DBW capable)
- 4× temp sensors | 7× analog 0–5V | 2× trigger (VR or Hall) | 2× digital inputs | 1× CANbus
- Bluetooth connectivity — MDash Android app
- 1000Hz data logging | 8MB memory | ARM Cortex-M3 @ 120MHz
- Supply: 8–22V | Dimensions: 140 × 134 × 42mm | Weight: 590g
- Supports: 1–12 cylinder, rotary (1–3), 2-stroke, wasted spark, direct spark, odd-fire
Box Includes
- MaxxECU Sport ECU unit

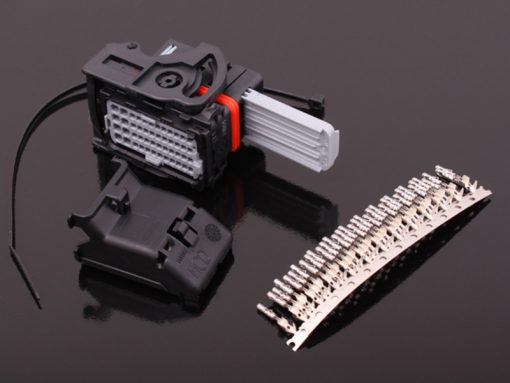

- 48-pin CMC connector and pins (SKU 925)
- Bluetooth antenna (SKU 949)
- USB PC cable 1.5m (SKU 924)
- MAP sensor hose and conversion fittings (SKU 928)
Want the loom included? View Standard Kit →
NZ Shipping $12.99 · Free Pickup Hampton Downs · Secure payments via Stripe
