In Stock
Brand New
MaxxECU
SKU: 1812

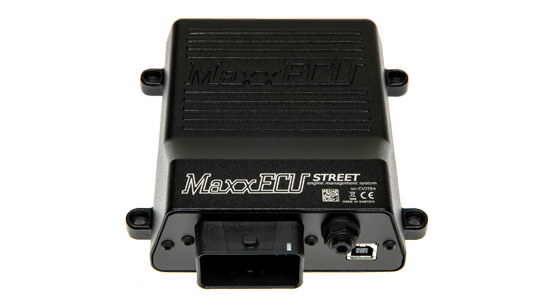

MaxxECU Street
Standard Kit — 3m Loom Included
$1,955.00 NZD inc. GST
3m loom included
The MaxxECU Street Standard Kit gives you the complete Street package ready to install — built-in wideband lambda controller, integrated 4 bar MAP sensor, and a pre-terminated 3-metre Street harness so you can go straight to fitting. Six injector and ignition outputs handle everything from a 4-cylinder to a 6-cylinder build, with the extra cable adding reach wherever you need it.
Specifications
- Built-in wideband lambda controller (LSU 4.2 / 4.9)
- Integrated 4 bar MAP sensor (reads up to 3 bar boost)
- 6× injector outputs (high impedance) | 6× ignition outputs (5V signal)
- 4× GPO ground switching outputs (GPO 1–3: 2A each; GPO 8: 5A)
- 4× temp sensors | 3× analog 0–5V | 2× trigger (VR or Hall) | 2× digital inputs | 1× CANbus
- 1000Hz data logging | ARM Cortex-M3 @ 120MHz
- Supply: 8–22V | Dimensions: 140 × 134 × 42mm | Weight: 520g
- Supports: 1–12 cylinder distributed, 2–8 cyl wasted spark, direct spark, rotary, 2-stroke, odd-fire

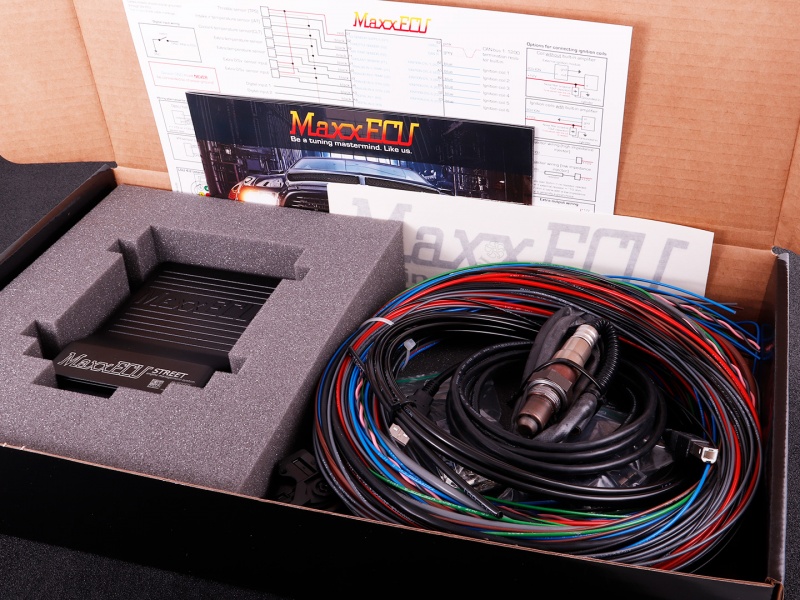

Box Includes
- MaxxECU Street ECU unit
- 3-metre Street harness — pre-terminated (SKU 1763)
- Extra cable (SKU 1052)
- USB PC cable 1.5m (SKU 924)
- MAP sensor hose and conversion fittings (SKU 928)
Looking for the Basic Kit (no loom)? View here →
