In Stock
SKU: SWIMSEROTS

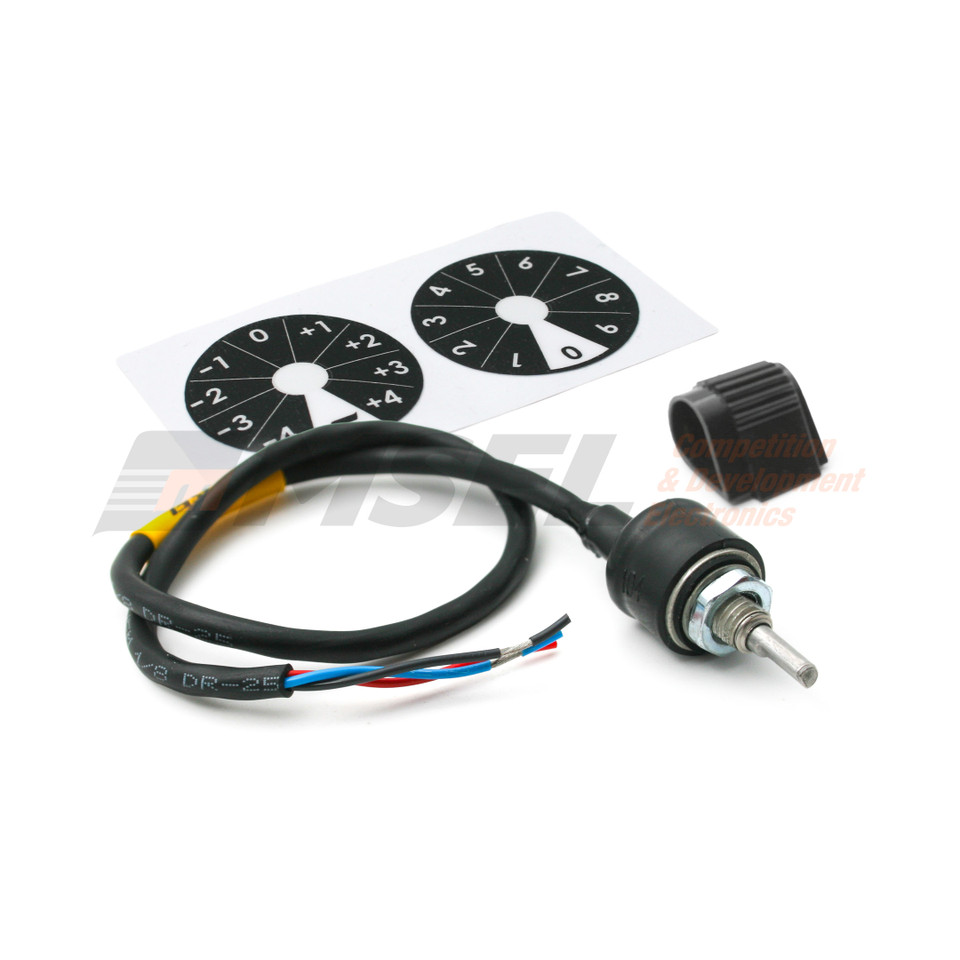

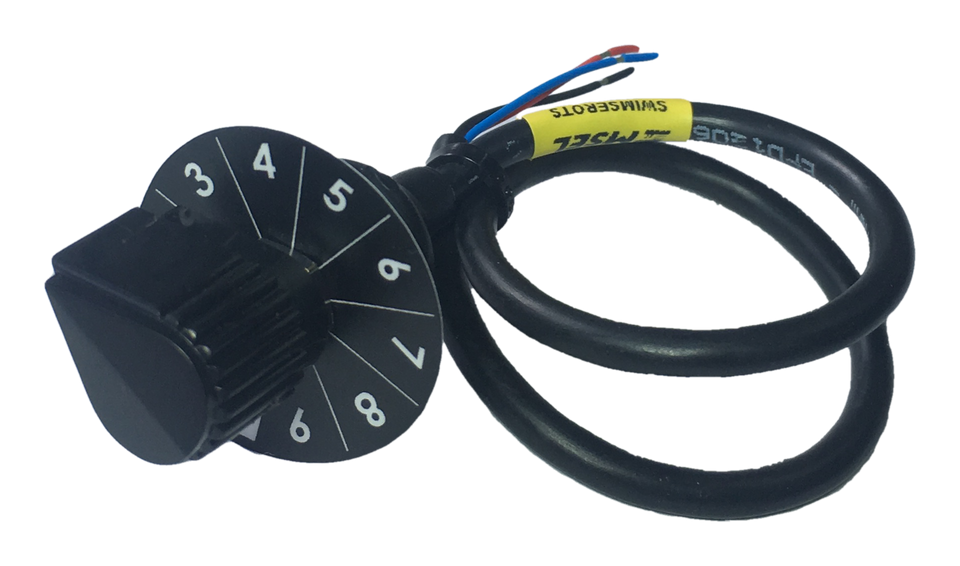

MSEL 2-10 Position Rotary Switch with Straight Boot
$194.35 NZD inc. GST
Motorsport-grade rotary dial for in-car parameter adjustment — traction control, map switching, boost levels and more — without needing a laptop. Connects to any aftermarket ECU or logger via voltage input. Includes two decal sets (0–9 and ±4) and a position-limiting pin.
Specifications
- 2–10 selectable positions (adjustable with included pin)
- Supply voltage: 5–8V
- Output: 10–90% of Vcc (ratiometric voltage)
- 300mm fly lead — no connector (solder direct or add your own)
- Pinout: Black (GND), Blue (signal), Red (5–8V supply)
- Thread diameter: 6.1mm, max panel thickness: 4mm
- Includes 0–9 and ±4 decal sets
- Connects to temp inputs by leaving 5V wire disconnected
- Compatible with Haltech, Link ECU, MaxxECU, MoTeC & more
