In Stock
Part #: 14-761

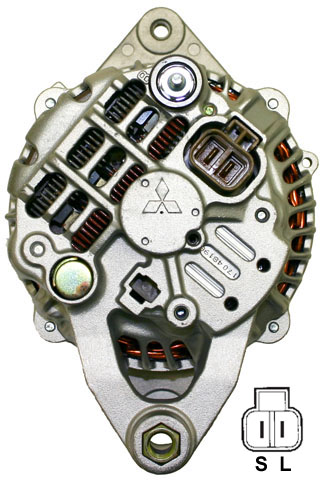

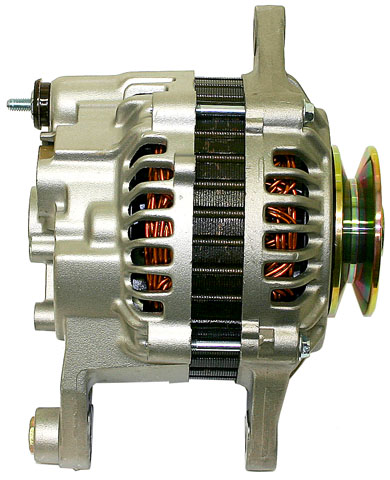

Mazda Alternator – 12V 70A
$315.00 NZD inc. GST
Mitsubishi IF/IR replacement alternator for a range of Mazda applications including the RX-7 FC Turbo, 929, and MPV. 12V 70A with a 73.0mm Bosch 13A section belt pulley. Suits both early and late 929 series and the MPV LV 3.0i V6 variants.
Specifications
- Suits Mazda RX-7 FC Turbo 1.3L (03.89–12.91), 929 III HC 2.2/3.0 (1.88–6.91), MPV I LV 3.0 V6 (95–99)
- Manufacturer: Mitsubishi | Type: IF/IR (Internal Fan / Internal Regulator)
- Voltage: 12V | Output: 70A
- Pulley Diameter: 73.0mm (Bosch 13A section belt)
- P.L.D.: 66mm | C-C: 175mm | P.H.D.: 10mm
- Adjusting Hole Diameter: M8 (threaded) | Rear Pivot Hole: M10 (threaded)
- Shaft Size: 15.0mm | Pulley V Distance From Bracket: 28.0mm | Stator Diameter: 128mm
- Part #: 14-761
NZ Shipping $12.99 · Free Pickup Hampton Downs · Secure payments via Stripe
