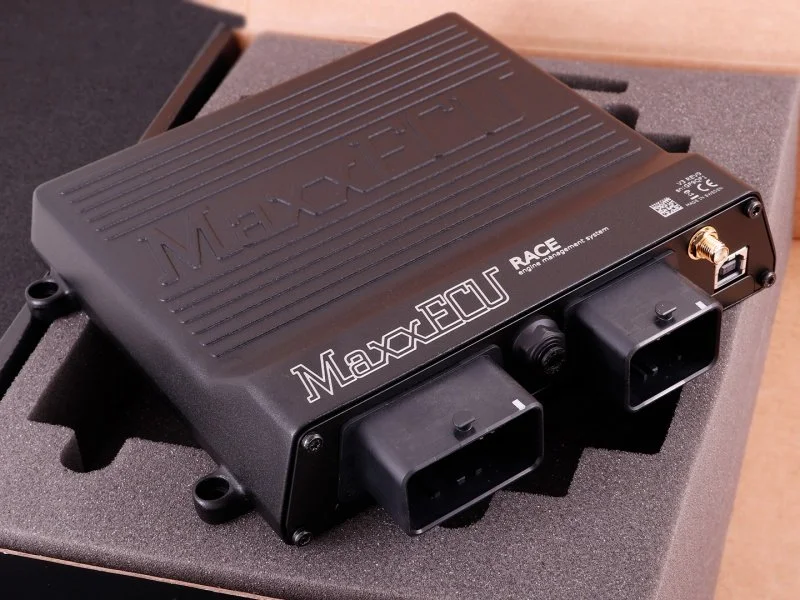

MaxxECU RACE
MaxxECU RACE, based on the MaxxECU PRO and uses the same easy to use, yet powerful MTune software.
Specification:
All 3-12 cylinder engines (4-stroke)
Up to 8 cylinders fully sequentially
Up to 12 cylinders in wasted spark
Lambda (WBO) sensor. Supports Bosch LSU 4.2, 4.9
2 trigger inputs. VR or digital. Automatic trigger level detection
2 extra temperature sensors
2 knock sensor inputs
6 extra 0-5V inputs
4 extra digital inputs (VR / hall) or switches
8 EGT TYPE-K/N inputs (1200C/2200F) in separate harness
8 peak/hold injector outputs
8 ignition outputs
9 extra LOW DRIVING outputs for additional features
2 extra +12V DRIVING outputs
4 extra motor outputs
